The new bed has overall improved the rigidity of the machine and the spindle is now consistently square to the bed. Prepare the Extrusions. Drill four 5mm holes, two on each side of the T-Slot extrusion, and then countersink the top side. You may need to also carve away a little bit of the slot to make sure there is enough clearance for the.

1. Production Parts. Reduce your CNC machining costs when you order higher quantities of machined parts. Our production capabilities for machining—powered by our New Hampshire-based facility, Rapid Manufacturing—allow up to 1,000+ machined parts along with first article inspection (FAI) reporting, material certifications, part assembly, and additional finishing options like anodizing.
2. A CNC machine is a computer numerical control device automated to perform a complex material cutting task. Once a component is designed by an engineer, for example an aircraft part, a CNC machine is programmed to mill that designed part out with high precision into the required material.

CNC Machining is a manufacturing process where computers run programs that control how the machines will manufacture parts. These CNC Programs using CNC Software can control everything from the motions the machine makes to spindle speed, turning coolant on or off, and much more. The computer language used to program CNC Machines is called “G-Code”. To make it easier, g-code is seldom written by hand. Instead, visual programming tools called CAM Software are used to create the g-code.

Machined parts are often chosen when manufacturing must result in high precision or quality, or when the materials are particularly tough and hard to work.

There are many different kinds of CNC Machines including 3D Printers, CNC Mills, CNC Lathes, CNC Lasers, Water Jets, Electronic Discharge Machines (EDM’s), CNC Routers, and more.

What Does CNC Stand For?

CNC is the acronym for Computer Numerical Control. It is an outgrowth of the older term “NC”, which stands for “Numerical Control“. It refers to the idea of controlling machine tools via computer. CNC Machines are robots of a sort. With the older “NC” term, a computer need not be involved. The machine might be controlled using, for example, punched tape.

The NC Programs tell the machine the following types of things:

• How fast to turn the spindle
• How fast to move the cutter
• Direction to move the cutter in each axis (X, Y, and Z for 3 axis, and more for a 4 or 5 axis machine)
• What cutter to use if the machine has a tool changer
• When to turn coolant and or off (i.e. spray cooling fluid on the part during cutting)

And more.

CNC machines are computer-controlled machine tools. Before CNC, machine tools were manually controlled by machinists.

With CNC, a computer controls servos that operate the machine. Essentially they are machining robots. NC, and later CNC, allowed for tremendous increases in productivity for machine tools because the machinery could be run automatically without requiring constant attention from their operator.

Before the advent of such automation, there was a simpler automation capability in the form of hydraulic tracer systems. Such systems used hydraulics to cause the cutting tools of a lathe or mill to follow or trace a template.

The taper attachments available for many manual lathes are not unlike the hydraulic tracer capability, it’s just that the tracer is capable of more elaborate templates than simple tapers.

But the advent of first NC and then later CNC radically increased the amount of automation that was possible when manufacturing. CNC Machining is the dominant method of machining materials these days, though manual machining is still quite common as well for one-offs, repair, and prototyping work.

The individuals that run CNC Machinery on Shop Floors are called “CNC Operators,” while those that write the programs to automate production are “CNC Programmers.”

CNC Machines execute what are called “Part Programs” which are written in a special language called “G-Code.” A g-code part program may either be directly coded, or CAM Software may be used to convert a CAD drawing of the part into g-code.

For a long time, CNC Machines were strictly industrial machines because they cost many tens of thousands of dollars. Today, DIY CNC’ers build their own CNC machines as a hobby and there are also many fine machines available in price ranges that make it possible to own a CNC machine in a home shop.

The precision of CNC machinery is largely a function of the quality of the machine. Machines designed for very high precision must be very high quality and are therefore quite expensive.

Ready to Learn More About CNC?

You need our CNC Beginner and DIY Cookbook. It is your guide to all the free resources, tutorials, and guides we have to help you learn CNC.

What Kinds of CNC Machines Exist?

The short answer is more than we could possibly go into here, but let’s try to cover some of the major categories of the most common CNC Machines. We will discuss each machine individually and tell you what the machine is and what it does.

CNC Milling Machines

A typical CNC Milling Machine…

In a mill, the cutter is placed in the spindle where it rotates. The workpiece then moves past the cutter so that chips may be sliced off. The act of cutting a workpiece on a mill is called “Milling”.

Basic CNC Mill Operation. More advanced CNC Mills are called “Vertical Machining Centers”…

CNC Mills have at the very least the ability to cut in 3 dimensions (some older machines may be limited to 2 or 2 1/2 if there are limitations on when that 3rd dimension may be used) which are referred to as the X, Y, and Z axes. Each axis is controlled by a servo or stepper motor that is triggered by the CNC Control.

The most elaborate CNC Milling Machines are called “Machining Centers.” For example, there are Vertical Machining Centers (VMC’s) and Horizontal Machining Centers (HMC’s). The vertical and horizontal refer to whether the axis parallel to the spindle (typically “Z”) is vertical or horizontal.

CNC Lathes

Typical CNC Lathe, the Haas TL-1…

Some view Lathes as the only universal CNC Machine because a lathe can make all of the parts needed for another lathe. A lathe spins the workpiece in a spindle while a fixed cutting tool approaches the workpiece to slice chips off of it. Because of this geometry, lathes are ideal for parts that have symmetry around some axis that could be chucked up in the spindle.

What Is A Web Slot In Cnc Machine Operator

Making a Chess Rook on a CNC Lathe…

CNC Lathes have at the very least the ability to drive the cutting tool under g-code control over 2 axes, referred to as X and Z. They may have a considerable amount of other functionality as well, and there are many variations on lathes such as Swiss Lathes.

The act of cutting a workpiece on a lathe is called “Turning”. The more heavy featured CNC Lathes are called “Turning Centers”. A Turning Center typically has a full enclosure and a tool changer, usually called a “Turret” on a lathe, but there are also “Gang” tool lathes.

A more advanced Turning Center may have the ability to mill as well. To do this, the spindle axis must operate as a servo so it can be precisely positioned at a particular angle. Turning Centers that can act as milling machines are called Mill-Turn Machines.

A Mill-Turn Machine can be very efficient at production if it is equipped with a bar puller or bar feeder. Raw materials in the form of bars are loaded on and the machine automatically processes them to produce finished or nearly finished parts. A Mill-Turn machine requires little supervision or manual control.

CNC Routers

CNC Router…

A CNC Router is actually a type of CNC Mill, typically one that uses what’s called a “gantry” configuration. They’re called CNC Routers instead of CNC Gantry Mills when they’re used to cut wood, but this need not exclusively be the case. A typical CNC Router is usually not capable of as much precision as a CNC Mill. They sacrifice some precision in the name of a larger work envelope with the gantry design.

Cutting a raised panel door in seconds with a commercial CNC Router…

Many think of CNC machines as being focused on cutting metal, but there is a huge market for CNC woodworking machines of which the CNC Router is the principle example.

There are many more types of CNC machine than just these three most common types including CNC presses of various kinds for fabrication, Plasma Tables, EDM machines, water jet cutters, and so on.

New CNC technologies are appearing all the time. Who knows what the future will bring?

CNC Plasma Cutters, Lasers, and Waterjets

CNC Plasma Cutters, Lasers, and Waterjets are different kinds of CNC Machines that are used primarily to cut parts out of flat sheet material.

Here’s a typical CNC Plasma Cutter at work:

A typical CNC Plasma Cutter at work. Image courtesy of All3DP.com.

Ready to Learn More About CNC?

You need our CNC Beginner and DIY Cookbook. It is your guide to all the free resources, tutorials, and guides we have to help you learn CNC.

Even More CNC Machines

The list of CNC Machines is extensive. Here are some of the other possibilities we haven’t mentioned:

• CNC Electronic Discharge Machines (“EDM’s”)
• CNC Foam Cutters
• CNC Wire Bending and Tubing Bending Machines
• CNC Punches
• CNC Embroidery Machines (they put custom logos on Baseball caps!)
• CNC Pattern Cutters (for cutting vinyl, paper, and more in precise patterns)
• CNC Food Makers (for cake decoration and more)
• CNC Pottery Printers (a form of 3D Printer)

There are even CNC Bartenders, but that’s stretching the definition, LOL!

How Do CNC Machines Make Parts?

The process of part production or manufacture is pretty straightforward, and involves the following steps (for greater detail on a step, click through the link):

• Use CAD software to design a 2D or 3D model of the part you want to make. CAD stands for “Computer Aided Drafting”, so CAD software is like drawing software that lets you precisely specify the dimensions of your part.

• Use CAM software to convert the CAD model into g-code. G-Code is the language used to program a CNC Machine. You can learn more about it in our Free G-Code Programming Course, one of our easy tutorials.

• In this step, the machine is set up with workholding, proper tooling, and the g-code program and tool data are loaded to prepare the machine to manufacture the part. The operator will also tell the machine where part zero is. Part Zero is the axis position that corresponds to 0, 0, 0 in the CAD model of the part.

• With everything set up, it’s time to machine the part.

This description is simplified. For a lot more detail, see our in-depth article on How to Make CNC Parts

How Can I Get Started With CNC?

Given the basic history of CNC and an overview of the major CNC Machines, what does one need to know to get started with CNC?

Knowledge in a number of different areas will be helpful. For example, basic machining skills are pretty important. A CNC machine starts from basic machining principles, although it can automate operations that are flat out impossible for a manual human machinist to perform by turning handwheels.

A knowledge of some electronics, principally around motion control applications is helpful as well, since CNC Machines involve quite a lot of electronics in addition to their mechanical aspects. We have several articles related to the type of electronics knowledge needed for CNC in our site’s Cookbook section.

Since “What does CNC stand for?” is answered “Computer Numerical Control”, obviously computers are important. But specifically, computer software that’s used with CNC. There are a few different kinds.

The programs that run CNC machine tools are called “part programs.” Before we can get very far, we must understand how to create and use CNC part programs, which are written in some dialect of G-Code. Here again, CNCCookbook offers a free tutorial course that teaches how to read and write the G-Code.

Having gotten this far, the aspiring CNC machinist will be realizing that there is quite a lot of specialized CNC Software. Here are four of the most common types of CNC software:

– CNC Calculators to help calculate Feeds and Speeds. Check out our G-Wizard CNC Calculator for example.

– CNC Program Editors to help us manage g-code. Try our G-Wizard Editor.

– CAD programs used to create drawings and 3D models of the parts we want to machine.

– CAM programs that start from a CAD drawing and produce the g-code our CNC machines execute.

There are many more types of CNC software out there. For a survey of all the different varieties, check out our article, “CNC Software: Digital Tooling for CNC“.

Any of the links in the last section will give you more material to chew on as you get started learning more about CNC.

CNC Software for Beginners

A big part of CNC is the software. If you’re ready to take the plunge and move beyond reading about the possibilities, start with our Guide to the Best CNC Software for Beginners.

We’ve worked hard to put together the best buying guides, evaluation tips, and even guides to secret smokin’ deals that let you buy the most popular software for unheard of prices. Check it out!

A Short History of CNC

The first commercial NC machines were built in the 1950’s, and ran from punched tape. While the concept immediately proved it could save costs, it was so different that it was very slow to catch on with manufacturers.

In order to promote more rapid adoption, the US Army bought 120 NC machines and loaned them to various manufacturers so they could become more familiar with the idea of numerical control. By the end of the 50’s, NC was starting to catch on, though there were still a number of issues.

For example, g-code, the nearly universal language of CNC we have today, did not exist. Each manufacturer was pushing its own language for defining numerical control or part programs (the programs the machine tools would execute to create a part).

1959 CNC Machine: Milwaukee-Matic-II was first machine with a tool changer…

A number of key developments brought CNC rapidly along during the 1960’s:

– Standard G-Code Language for Part Programs: The origin of g-code dates back to MIT, around 1958, where it was a language used in the MIT Servomechanisms Laboratory. The Electronic Industry Alliance standardized g-code in the early 1960’s.

– CAD came into its own and started rapidly replacing paper drawings and draftsmen during the 60’s. By 1970, CAD was a decent sized industry with players like Intergraph and Computervision, both of whom I consulted for back in my college days.

– Minicomputers like the DEC PDP-8’s and Data General Nova’s became available in the 60’s and made CNC machines both cheaper and more powerful.

By 1970, the economies of most Western countries had slowed and employment costs were rising. With the 60’s, having provided the firm technology foundation that was needed, CNC took off and began steadily displacing older technologies such as hydraulic tracers and manual machining.

US companies had largely launched the CNC revolution, but they had been overly focused on the high end. The Germans were the first to see the opportunity to reduce prices of CNC, and by 1979 the Germans were selling more CNC than the US companies. The Japanese repeated the same formula to an even more successful degree and had taken the leadership away from the Germans just one year later, by 1980. In 1971, the 10 largest CNC companies were all US companies, but by 1987, only Cincinnati Milacron was left and they were in 8th place.

More recently, microprocessor technology has made CNC controls even cheaper, culminating with the availability of CNC for the hobby and personal CNC market.

What Is A Web Slot In Cnc Machine Software

Affordable CNC machinery also paved the way for CNC use in prototyping, along with 3D Printing. Earlier, the use of CNC was confined primarily to production shops.

The Enhanced Machine Controller project, or EMC2, was a project to implement an Open Source CNC controller that was started by NIST, the National Institute of Standards and Technology as a demonstration. Some time in 2000, the project was taken into the public domain and Open Source, and EMC2 appeared a short time later in 2003.

Mach3 was developed by Artsoft founder Art Fenerty as an offshoot of early EMC versions to run on Windows instead of Linux, making it even more accessible to the personal CNC market. Art’s company, ArtSoft, was founded in 2001. The advent of Mach3 made CNC affordable outside industrial shops for the first time.

Both the EMC2 (now called LinuxCNC) and Mach3 CNC software programs are alive and thriving today, as are many other CNC technologies.

We’ve come a long ways since the old numerical control days!

Ready to Learn More About CNC?

You need our CNC Beginner and DIY Cookbook. It is your guide to all the free resources, tutorials, and guides we have to help you learn CNC.

Like what you read on CNCCookbook?

Join 100,000+ CNC'ers! Get our latest blog posts delivered straight to your email inbox once a week for free. Plus, we’ll give you access to some great CNC reference materials including:

• Our Big List of over 200 CNC Tips and Techniques
• Our Free GCode Programming Basics Course
• And more!

Just enter your name and email address below:

A CNC machine is a computer numerical control device automated to perform a complex material cutting task. Once a component is designed by an engineer, for example an aircraft part, a CNC machine is programmed to mill that designed part out with high precision into the required material. A CNC can be compared to a mill, a drill, or a router typically seen in a machinist’s shop. A CNC is considered a very expensive investment for manufacturers, other professionals, and hobbyists.

Types of CNC Machinery Manufacturers

There is a broad range of CNC machinery, used in many industries such as aerospace, electronics, and medical. Lathes, mills, drills, laser cutting, laser engraving, water cutting, plasma cutting, and many other machining tools can be automated. CNC manufacturers typically target a certain price range for their products, from hobbyists at $1k-$3k, to mid-range of $20k-$60k, and the high grade professional range of greater than $100k.

Top 10 CNC Machinery Manufacturers in the U.S.

There are only a few professional level CNC manufacturers within the US, with many more low to mid-range manufacturers across the country. The majority of these manufacturers are privately owned companies, making it difficult to obtain information on their true market size. Our ranking is therefore based on a combination of market capitalization and brand name recognition within the industry.

Table 1 – Key U.S. Manufacturers of CNC Machinery

Notes:

*Market capitalization values are as of September 19, 2018

CNC Manufacturing - Summaries and Company Info

Lincoln Electric is the acquiring company of the Torchmate product line of automated plasma cutting tables which encompasses a broad scope of machines from entry-level CNC machines to industrial plasma cutting tables. Their fully assembled machines are targeted at small and mid-size shops looking to add their first piece of affordable automated machinery to their business. Founded 1979.

Hurco is a global leading CNC machine tool technology company with divisions throughout North America, Europe, and Asia. Provides both NC and conversational programming. Designs, manufactures, and sells CNC machine tools to companies in the metal cutting industry, offering general purpose computerized machine tools, such as vertical machining centers, turning centers, knee mills, vertical machining centers, tool room bed mills, combination lathes, slant-bed lathes, horizontal machining centers, bridge mills, double column vertical machining centers, and high-speed drill and tap machines. Founded in 1968.

Haas Automation is the largest machine tool builder in the western world, manufacturing a complete line of CNC vertical machining centers, horizontal machining centers, CNC lathes, and rotary products. Haas manufactures all critical components in-house and has four major product lines: vertical machining centers (VMCs), horizontal machining centers (HMCs), CNC lathes, and rotary tables. Has a number of large five-axis and specialty machines.

Powermatic, founded in 1921, has a large range of general purpose industrial woodworking machinery including a small CNC line. Operates in a 400,000 square foot facility in LaVergne, TN.

Tormach provides engineered small CNC machines, tooling, and related products. The flagship product is the Personal CNC which is designed for inventors, small/boutique manufacturers, garage entrepreneurs, product developers, hobbyists, and educators. Founded in 2001.

Bolton Tools’ product line includes household hardware items to industrial and residential machinery and equipment. Offers a variety of conventional metal lathes, milling machines, and mill drills. Parent company is Bolton Group, Inc.

CNC Masters has 20+ years experience making CNC lathes and mills, controllers, and has their own CNC operating software. 1,500+ employees.

Laguna, founded in 1983, has an extensive line of woodworking machinery and CNC automation products including a CNC Router, CO2 lasers, and plasma cutters.

Axiom Precision offers a wide range of intro-level affordable machines to address nearly any CNC application.

CNC Router Parts sells intro-level affordable CNC kits, accessories, and parts. Products include a ready-to-assemble CNC router and plasma machines along with step-by-step assembly instructions.

Top Global CNC Machinery Manufacturers

The CNC machinery industry involves a large number of mostly small companies offering very similar product lines, with only a few top players offering unique products. In China, for example, there are hundreds of companies offering copy-cat CNC products that all essentially look and operate the same. The following company list covers companies with unique and extensive product lines.

Table 2: Top Global CNC Machinery Firms

Notes:

*Market capitalization values are as of September 19, 2018 and were converted to US dollars using foreign exchange rates.

Company Summaries and Info

Maschinenfabrik Berthold Hermle AG, based in Germany, is one of the world's leading manufacturers of CNC milling machines, with 22,000 machines installed and 1000+ employees world-wide.

Okuma has a distribution network with nearly 2,000 sales, service, application engineering, and back office personnel - all backed by service staff and engineering experts based in Charlotte, NC. Okuma has a large offering of various CNC lines. Founded in 1898 in Japan.

Datron AG is a publicly traded, international high-tech company from Germany that employs about 235 people and maintains a worldwide distribution network in over 20 countries.. The product portfolio covers CNC milling machines for high speed milling (HSC-milling) and 3D engraving, dental milling machines, dispensing machines for accurate and quick bonding and sealing, and tools for high-speed processing.

Mazak leads in the manufacture of advanced technology solutions including a large offering of multi-tasking, hybrid multi-tasking, 5-axis, milling, turning, CNC controls, and automation.

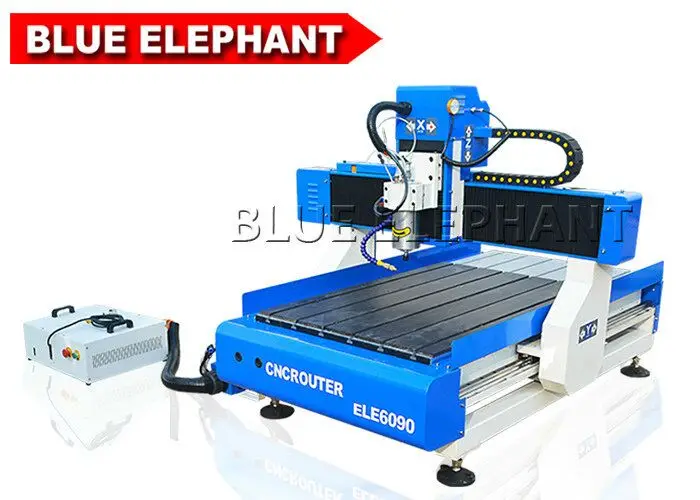

Blue Elephant specializes in the R&D and manufacturing of automated woodworking and CNC equipment for the digital production line of customized furniture. Main products include a CNC router, a 4 axis CNC router, a high-end customized furniture production line, a luxury CNC nesting machine, a cabinet closet cutting machine, a CNC machining center, an automatic punching machine, CNC drilling, and more.

Dalian Guofeng Machine Tools Co., Ltd claims to be one of biggest CNC enterprises in China, developing and producing CNC vertical lathes, conventional vertical lathes, heavy-duty horizontal lathes, vertical multi-tool lathes, etc. Founded in 2002.

Jinan iGolden CNC Equipment Co.,Ltd. specializes in CNC routing, laser engraving and cutting machines, and plasma cutting. Their main machine configurations employ parts imported from Italy, Japan, and Germany.

BCAM CNC is an international company that markets its products and services in 90 countries. Their product line includes a CNC router, a laser cutting machine, and a digital cutting table.

Vmade CNC has a range of plasma, engraving, and laser CNC machines. Vmade has sold their products internationally to more than 60 countries, with OEM service to more than 15 dealers and distributors.

Conclusion

Above we've listed the top domestic and global CNC manufacturers. For comprehensive information on U.S. based commercial and industrial CNC companies, head over to Thomas Supplier Discovery, where we have a database of over 400 listed CNC machinery companies.
